Key Features
- Long-Distance HDMI Transmission - Up to 492ft (150m) Extend 1080p HDMI video and audio signals up to 492 feet over standard Cat5e/6 network cables with exceptional clarity and stability
- Stunning Full HD 1080p @ 60Hz Delivers crisp, vivid visuals with smooth frame rates - perfect for presentations, signage, and multimedia playback
- Scalable, Flexible One-to-One or One-to-Many Setups Easily expand your video distribution using standard unmanaged Gigabit network switches to create One-to-Many Configuration. One transmitter can connect to up to 253 receivers, the additional receiver unit (part# CE-H3IP11-S1) is sold separately, ensuring a flexible and future-ready solution
- Stereo Audio + Audio Extraction Support Supports stereo audio through HDMI and features 3.5mm output jacks on both transmitter and receiver for PCM 2CH audio extraction
- IR Remote Control Extension (20-60KHz) Easily control your source device from the receiver location with integrated IR pass-through support
- Scalable Network Protocol (TCP/IP) Designed for flexible IP-based installations. Connect one transmitter to up to 253 receivers across your network
- Quick Reset Buttons Fast troubleshooting with dedicated reset buttons on transmitter - no need to unplug power
- Secure & Flexible Installation The plug-and-play design requires no drivers or software. Durable and mountable metal housing with ESD protection ensures reliable long-term performance
SIIG HDMI OVER IP EXTENDER TX UNIT, 1080P UP TO 492 FT (150M) VIA CAT5E/6, AUDI
CE-H3IP01-S1
SKU 15033795
UPC 662774046860
Regular price saves you $57.47 against MSRP.
Contact us to check availability
Product Overview
SIIG HDMI OVER IP EXTENDER TX UNIT, 1080P UP TO 492 FT (150M) VIA CAT5E/6, AUDI
- HDMI Over IP Extender with IR - 150m
- SIIG HDMI Over IP Extender with IR - 492ft (150m) - 1080p - IR- One-to-Many - SIIG HDMI Over IP Extender with IR- 492ft (150m) - Full HD 1080p Transmission with IR Control, Audio Extraction and One-to-Many Support - A high-performance HDMI Over IP Extender designed for long-distance signal transmission up to 492ft (150m) via standard Cat5e/6 network cables - Ideal for digital signage / education / broadcasting and commercial AV systems - Additional receiver unit (part# CE-H3IP11-S1) is sold
- SIIG HDMI Over IP Extender with IR - 492ft (150m) - 1080p - IR- One-to-Many
- SIIG HDMI Over IP Extender with IR- 492ft (150m) - Full HD 1080p Transmission with IR Control, Audio Extraction and One-to-Many Support - A high-performance HDMI Over IP Extender designed for long-distance signal transmission up to 492ft (150m) via standard Cat5e/6 network cables - Ideal for digital signage / education / broadcasting and commercial AV systems - Additional receiver unit (part# CE-H3IP11-S1) is sold separately
Technical Specifications
| Application/Usage | Digital Signage System |
| Application/Usage | Educational Facilities |
| Application/Usage | Commercial |
| Application/Usage | A/V Equipment |
| Application/Usage | Presentation System |
| Application/Usage | Multimedia |
| Application/Usage | Display |
| Application/Usage | Trade Show |
| Application/Usage | Retail |
| Application/Usage | Shopping Center |
| Application/Usage | Restaurant |
| Application/Usage | Classroom |
| Application/Usage | Set-top Box |
| Application/Usage | Gaming |
| Product Type | Video Extender Transmitter/Receiver |
| Manufacturer Part Number | CE-H3IP01-S1 |
| Packaged Quantity | 1 |
| Limited Warranty | 2 Year |
| Connectivity Technology | Wired |
| Manufacturer | SIIG, Inc |
| Product Name | HDMI Over IP Extender with IR - 492ft (150m), 1080p @ 60Hz, IR Control, Audio Extraction, One-to-Many Support |
| Brand Name | SIIG |
| Country of Origin | China |
| Graphics Modes | Full HD |
| Maximum Video Resolution | 1920 x 1080 |
| Twisted Pair Cable Standard | Category 5e |
| Twisted Pair Cable Standard | Category 6 |
| Maximum Operating Distance | 492.13 ft |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| HDMI In | Yes |
| HDMI Out | Yes |
| Number of Output Devices Supported | 1 |
| Number of Input Devices Supported | 1 |
| Transmitter Height | 0.87" |
| Transmitter Width | 2.96" |
| Transmitter Depth | 3.04" |
| Receiver Height | 0.87" |
| Receiver Width | 2.96" |
| Receiver Depth | 3.04" |
| Transmitter Weight (Approximate) | 4.16 oz |
| Receiver Weight (Approximate) | 4.16 oz |
| Remote (IR) Output | 1 |
| Product Color | Black |
| Supported Video Modes | 1080p |
| Supported Video Modes | 480p |
| Supported Video Modes | 576p |
| Supported Video Modes | 720p |
| Supported Video Modes | 1080i |
| Remote (IR) Input | 1 |
| Data Link Protocols | TCP/IP |
| Color Family | Black |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Marketing Information
- HDMI Over IP Extender with IR - 150m
- 2x Power adapter 5V/1A
- 1x IR emitter cable
- 1x IR receiver cable
- User Manual
HDMI Over IP Extender with IR- 492ft (150m), Full HD 1080p Transmission with IR Control, Audio Extraction, and One-to-Many Support; A high-performance HDMI Over IP Extender designed for long-distance signal transmission up to 492ft (150m) via standard Cat5e/6 network cables. Ideal for digital signage, education, broadcasting, and commercial AV systems, the additional receiver unit (part# CE-H3IP11-S1) is sold separately
Shipping & Dimensions
Similar Products
SIIG FULL HD 1080P WIRELESS HDMI EXTENDER RECEIVER UNIT, 5G WIRELESS, 492 FT (1
CE-H3WE21-S1
SIIG HDMI OVER IP EXTENDER RX UNIT, 1080P UP TO 492 FT (150M) VIA CAT5E/6, AUDI
CE-H3IP11-S1
SIIG FULL HD 1080P WIRELESS HDMI EXTENDER KIT WITH IR 5G WIRELESS, 492 FT (150M
CE-H3WE11-S1
TRUE 4K PERFORMANCE SIIG CE-H3KE01-S1 KVM OVER IP EXTENDER RECEIVER TRANSMITS HD
CE-H3KE01-S1
TRUE 4K60HZ RECORDING SIIG CE-H3CT01-S1 USB-C HDMI CAPTURE CARD CAPTURES AND REC
CE-H3CT01-S1

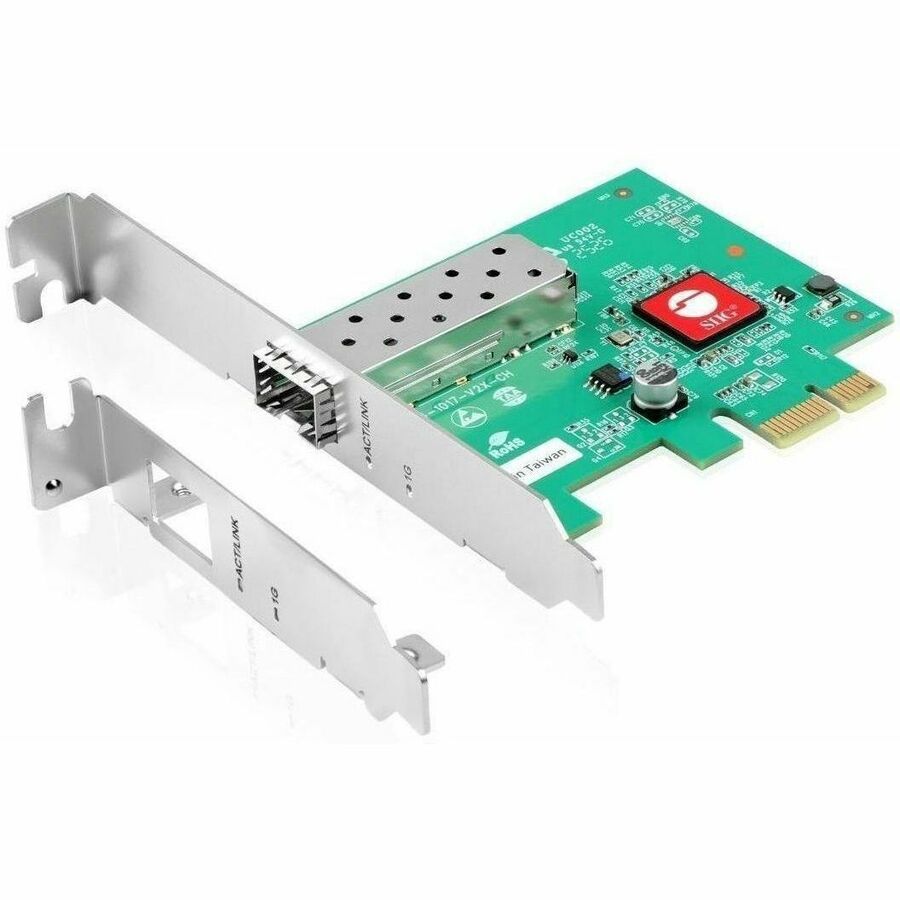

SIIG SINGLE-PORT 1G SFP ETHERNET NETWORK PCIE CARD GIGABIT FIBER OR COPPER VIA
