Key Features
- Video Extender Transmitter is all you need for dependable and productive audio/video transmission
- The HD-TXC-4KZ-101-1G-W video extender transmitter provides plenty of freedom with wired connectivity
- 229.66 ft maximum operating distance for feasible operation and optimal coverage
- WUXGA graphics mode for stunning, lively video quality
- 1080p supported video mode for optimal viewing brilliance and efficiency
- 4096 x 2160 maximum video resolution for a spectacular, sharp display with added reliability
- HDMI in allows convenient transfer of content and data to video extender transmitter to ensure maximum dependability
- Wall mountable video extender transmitter encourages collaboration, and interactivity with maximum productivity
DM ESSENTIALS 4K60 4:4:4 TRANSMITTER FOR HDMI, RS-232, AND IR SIGNAL EXTENSION O
HD-TXC-4KZ-101-1G-W
SKU 14722725
Regular price saves you $237.79 against MSRP.
Contact us to check availability
Product Overview
DM ESSENTIALS 4K60 4:4:4 TRANSMITTER FOR HDMI, RS-232, AND IR SIGNAL EXTENSION O
- DM ESSENTIALS 4K60 4:4:4 TRANSMITTER FOR HDMI, RS 232AND IR SIGNAL
- Crestron DM® Essentials 4K60 4:4:4 Transmitter for HDMI®, RS-232, and IR Signal Extension over CATx Cable, Wall Plate, White - 229.66 ft Range - 1 x Network (RJ-45) - 1 x HDMI In - 1 x Remote (IR) Input - 1 x Remote (IR) Output - 1080p, 1080i - WUXGA, 2K, 4K, WQXGA, Full HD, QWXGA, 4K UHD - 4096 x 2160 - Category 5e - Wall Mountable, Wall Plate, Gang Box Mount
- Crestron DM® Essentials 4K60 4:4:4 Transmitter for HDMI®, RS-232, and IR Signal Extension over CATx Cable, Wall Plate, White
- 229.66 ft Range - 1 x Network (RJ-45) - 1 x HDMI In - 1 x Remote (IR) Input - 1 x Remote (IR) Output - 1080p, 1080i - WUXGA, 2K, 4K, WQXGA, Full HD, QWXGA, 4K UHD - 4096 x 2160 - Category 5e - Wall Mountable, Wall Plate, Gang Box Mount
Technical Specifications
| Product Type | Video Extender Transmitter |
| Manufacturer Part Number | HD-TXC-4KZ-101-1G-W |
| Connectivity Technology | Wired |
| Form Factor | Wall Mountable |
| Form Factor | Wall Plate |
| Form Factor | Gang Box Mount |
| Manufacturer | Crestron Electronics, Inc |
| Product Model | HD-TXC-4KZ-101-1G-W |
| Product Name | DM® Essentials 4K60 4:4:4 Transmitter for HDMI®, RS-232, and IR Signal Extension over CATx Cable, Wall Plate, White |
| Product Line | Essentials |
| Brand Name | Crestron |
| Graphics Modes | WUXGA |
| Graphics Modes | 2K |
| Graphics Modes | 4K |
| Graphics Modes | WQXGA |
| Graphics Modes | Full HD |
| Graphics Modes | QWXGA |
| Graphics Modes | 4K UHD |
| Maximum Video Resolution | 4096 x 2160 |
| Twisted Pair Cable Standard | Category 5e |
| Maximum Operating Distance | 229.66 ft |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of HDMI Inputs | 1 |
| HDMI In | Yes |
| Transmitter Height | 4.12" |
| Transmitter Width | 1.72" |
| Transmitter Depth | 2.19" |
| Transmitter Weight (Approximate) | 5.54 oz |
| Remote (IR) Output | 1 |
| Product Color | White |
| Supported Video Modes | 1080p |
| Supported Video Modes | 1080i |
| Remote (IR) Input | 1 |
| Color Family | White |
Marketing Information
The HD-TXC-4KZ-101-1G is a DM® Essentials 4K60 4:4:4 wall plate transmitter designed to interoperate with a DM® Essentials receiver or DMPS Essentials switcher for the transmission of HDMI®, RS-232, and IR signals. A CAT5e or higher twisted pair cable (Crestron DM-CBL-8G or DM-CBL-ULTRA sold separately) is needed to connect the HD-TXC-4KZ-101-1G to the DM Essentials receiver or DMPS Essentials switcher. For 1080p, WUXGA, and 2K signals, a cable length of up to 230 ft (70 m) is supported. For UHD and 4K signals, a cable length of up to 130 ft (40 m) is supported.
The HD-TXC-4KZ-101-1G is available in two models: HD-TXC-4KZ-101-1G-W (white) and HD-TXC-4KZ-101-1G-B (black).
Interoperability with a DM Essentials Receiver or DMPS Essentials Switcher
The DM Essentials output port of the HD-TXC-4KZ-101-1G must be connected to a DM Essentials input port of a DM Essentials receiver or DMPS Essentials switcher. Examples of supported DM Essentials 4K60 4:4:4 receivers are the HD-RXC-4KZ-101 and HD-RXCA-4KZ-101 . Supported DMPS Essentials switchers are the HD-PS622 , HD-PS621 , HD-PS402 , HD-PS401 , and HD-RX-4K-210-C-E .
Note: When paired with an HD-RX-4K-210-C-E(-POE), the transmitter cannot provide power to the receiver. Power must be connected to the HD-RX-4K-210-C-E(-POE) only.
The HD-TXC-4KZ-101-1G can be configured and controlled only when it is used with a DMPS Essentials switcher. The web interface of the switcher can be used to configure the HD-TXC-4KZ-101-1G. In addition, control system programming and .AV Framework™ software support of the HD-TXC-4KZ-101-1G is hosted by the switcher.
4K60 4:4:4 and HDR Support
The HD-TXC-4KZ-101-1G supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.
One-Gang Wall Plate Design
The HD-TXC-4KZ-101-1G is designed to mount into a 1-gang U.S. electrical box or plaster ring (not included). The HD-TXC-4KZ-101-1G can receive power from the remote DM Essentials receiver (surface mountable only) or DMPS Essentials switcher.
Key Features
- Interoperability with a DM® Essentials receiver or DMPS Essentials switcher
- Point-to-point extension of HDMI®, RS-232, and IR signals over a CAT5e or higher cable
- DM Essentials transmission distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
- 4K60 4:4:4 capability
- HDR10, HDR10+, and Dolby Vision® video formats
- Compliance with HDCP 2.3
- CEC (Consumer Electronics Control) pass-through capability
- Compliance with HDCP 2.3
Shipping & Dimensions
Similar Products
CRESTRON FLEX ADVANCED TABLETOP MEDIUM ROOM CONFERENCE SYSTEM FOR MICROSOFT TEAM
6513971

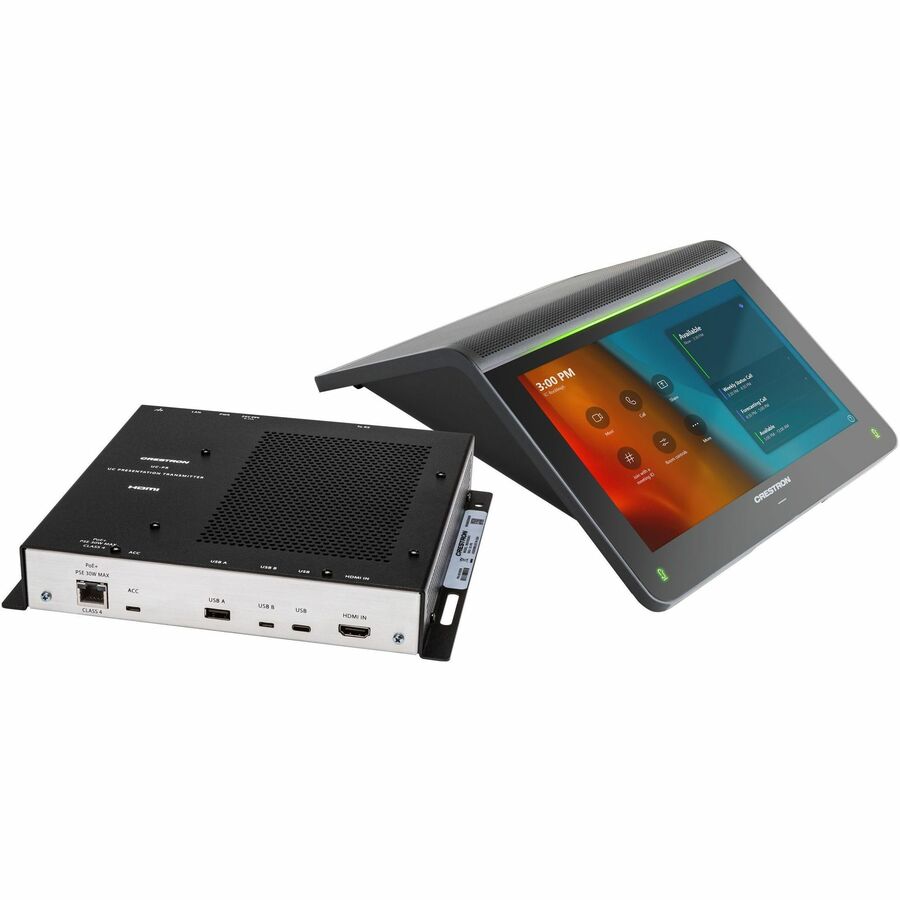

CRESTRON FLEX ADVANCED TABLETOP SMALL ROOM CONFERENCE SYSTEM FOR MICROSOFT TEAMS
