10/100/1000B-TX(POE) TO 1000B-SX, MM SC SW- NA

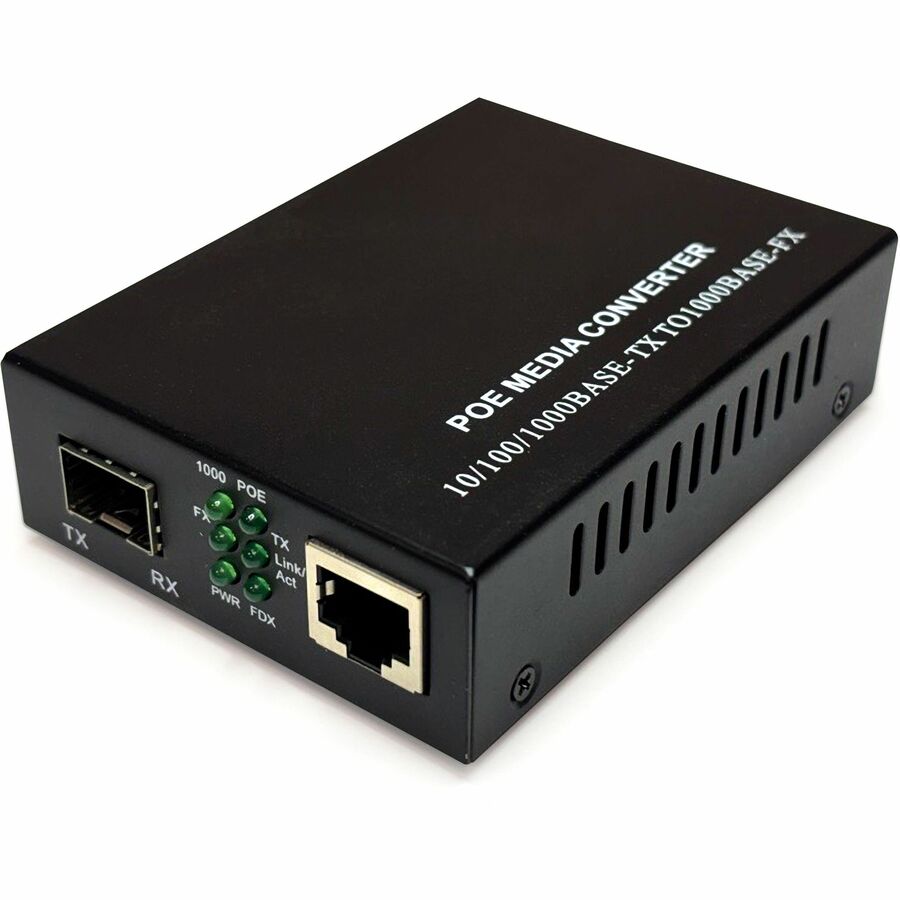

Product image

Key Features

Expand your network capabilities with this 2 transceiver/media converter
With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over twisted pair cable

Manuals & Resources

MANUAL User Manual › DATASHEET Product Datasheet › BROCHURE Manufacturer Brochure › MANUAL Assembly Instructions › WARRANTY Warranty Information › DATASHEET Product Fiche › GUIDE Energy Guide › SAFETY Safety Data Sheet › SAFETY Safety Data Sheet (FR) › SAFETY COSHH Sheet › TOUR Product Tour › 360 360° Product View ›

TRANSITION NETWORKS INC Transceivers/Media Converters

10/100/1000B-TX(POE) TO 1000B-SX, MM SC SW- NA

Mfr # SGPOE1013-100-NA SKU 9573602

$419.64 MSRP $644.00 Save 35%

Regular price saves you $224.36 against MSRP.

Available

Product Overview

10/100/1000B-TX(POE) TO 1000B-SX, MM SC SW- NA

GIGABIT POE MEDIA CONVERTER 10/100/1000BT TO 1000BSX MM SC
Transition Networks Power over Ethernet PSE Media Converter - 1 x RJ-45 , 1 x SC - 10/100/1000Base-T, 1000Base-SX
Transition Networks Power over Ethernet PSE Media Converter
1 x RJ-45 , 1 x SC - 10/100/1000Base-T, 1000Base-SX

Technical Specifications

Product Type	Transceiver/Media Converter
Manufacturer Part Number	SGPOE1013-100-NA
Maximum Distance Supported	0.22 km
Manufacturer	Lantronix, Inc
Product Name	Power over Ethernet PSE Media Converter
Network Technology	10/100/1000Base-T
Network Technology	1000Base-SX
Brand Name	Transition Networks
Country of Origin	Taiwan
Height	1"
Width	4.4"
Depth	5.1"
Number of Network (RJ-45) Ports	1
Network (RJ-45)	Yes
Number of SC Ports	1
Total Number of Ports	2
Fiber Optic Cable Core/Cladding Specification	62.5/125 µm

Marketing Information

Transition's AC powered PoE media converter combines data received over a fiber optic link with - 48VDC power; providing power to Data Terminal Equipment (DTE) Power Devices (PD)over unshielded twisted pair cable. The PoE converter is a Power Sourcing Equipment (PSE) and is fully compatible with Powered Devices (PD) that comply with the IEEE802.3af: 2003 standard. The converter also includes a PD signature sensing and power monitoring features per the IEEE 802.3af standard. Other features include Over-Current Protection, Under-Current Detection and Fault Protection Input.
