ACCESS V, 198", 16:10, MATT WHITE XT1000VB, 110 V, WITH LVC-IV LOW VOLTAGE CONTR

Product image

Key Features

Case dimensions are 7-3/8" high x 8-1/16" deep (19 cm x 20 cm), includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions, see Submittal in the Technical Documents tab for details.
Maximum image width up to 16' (488 cm) wide, depending on surface selection.
The standard Access is a good alternative whenever the above-ceiling space permits. Access Fit is recommended when space is at a premium.
Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.
Adjustable or removable hoisting brackets included for easy lifting during installation.
Sliding brackets on top of the case allow for adjustments for mounting.
Sliding brackets inside case accommodate different size screens.
Bottom closure panel detachable or hangs in place with "T" bracket to provide accessibility for service or maintenance.
Quick-connect wiring allows for early installation of the case with the addition of the screen later.
Low voltage, video interface or other controls can be built into housing for below ceiling access.

Manuals & Resources

MANUAL User Manual › DATASHEET Product Datasheet › BROCHURE Manufacturer Brochure › MANUAL Assembly Instructions › WARRANTY Warranty Information › DATASHEET Product Fiche › GUIDE Energy Guide › SAFETY Safety Data Sheet › SAFETY Safety Data Sheet (FR) › SAFETY COSHH Sheet › TOUR Product Tour › 360 360° Product View ›

DRAPER, INC. Projection Screens

ACCESS V, 198", 16:10, MATT WHITE XT1000VB, 110 V, WITH LVC-IV LOW VOLTAGE CONTR

Mfr # 140042U SKU 15433914 UPC 641092196280

$7,077.38 MSRP $14,928.00 Save 53%

Regular price saves you $7,850.62 against MSRP.

Available

Product Overview

ACCESS V, 198", 16:10, MATT WHITE XT1000VB, 110 V, WITH LVC-IV LOW VOLTAGE CONTR

ACCESS/V 198"/16:10 - MATT WHITE/ U
Draper Access V 198" Electric Projection Screen - 16:10 - Matt White XT1000VB - 105" Height x 168" Width - Recessed/In-Ceiling Mount
Draper Access V 198" Electric Projection Screen
16:10 - Matt White XT1000VB - 105" Height x 168" Width - Recessed/In-Ceiling Mount

Technical Specifications

Aspect Ratio	16:10
Product Type	Projection Screen
Diagonal Image Size	198"
Manufacturer Part Number	140042U
Limited Warranty	5 Year
Weight (Approximate)	230 lb
Manufacturer	Draper, Inc
Product Name	Access V Electric Projection Screen
Mount Type	Recessed/In-Ceiling Mount
Product Line	Access V
Brand Name	Draper
Screen Fabric	Matt White XT1000VB
Environmentally Friendly	Yes
Environmental Certification	GREENGUARD Gold
Screen Folding Mechanism	Electric
Screen Height	105"
Screen Width	168"

Marketing Information

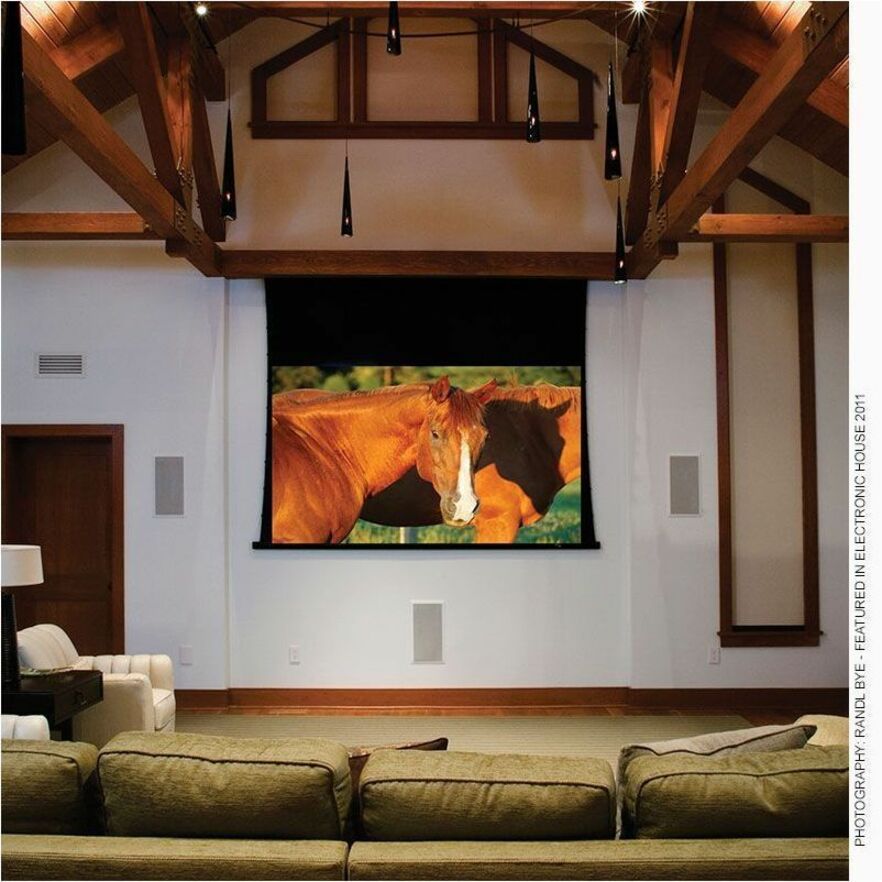

The ceiling-recessed Access V projection screen works well in universities, board rooms, training rooms, or home theaters. Ceiling-recessed screens are hidden from view when not in use providing complete concealment. Tab-tensioned screens offer a perfectly flat viewing surface and RF welded tabs for a more durable seal. The case can be installed during the initial construction phase, allowing the screen to be installed later to eliminate job site damage. Case includes a bottom access panel for easy service and maintenance.
