Key Features
- Digital Signage Kiosk offers maximum video signage efficiency with added usability
- 1280 x 800 display resolution for dependable display results with maximum efficiency
- Experience luminescent visual images with LCD display
- LED backlight enhances display performance that delivers an outstanding color range and contrast ratios
ELO 1099L 10-INCH WIDE HD LCD WVA (1000NIT LED BACKLIGHT), OUTDOOR OPEN FRAME, P
E354792
SKU 15430813
Regular price saves you $214.78 against MSRP.
Contact us to check availability
Product Overview
ELO 1099L 10-INCH WIDE HD LCD WVA (1000NIT LED BACKLIGHT), OUTDOOR OPEN FRAME, P
- Elo (E354792) Digital Signage Systems
- Elo 1099L Digital Signage Kiosk - 10.10" LCD - Thin Film Transistor (TFT) - Touchscreen - 24 Hours/7 Days Operation - 1280 x 800 - 16:9 - 25 ms - LED - 1000 Nit - HDMI - USBEthernet - Black
- Elo 1099L Digital Signage Kiosk
- 10.10" LCD - Thin Film Transistor (TFT) - Touchscreen - 24 Hours/7 Days Operation - 1280 x 800 - 16:9 - 25 ms - LED - 1000 Nit - HDMI - USBEthernet - Black
Technical Specifications
| Application/Usage | Outdoor |
| Application/Usage | Kiosk |
| Aspect Ratio | 16:9 |
| Product Type | Digital Signage Kiosk |
| Input Voltage | 12 V DC |
| Input Voltage | 24 V DC |
| Manufacturer Part Number | E354792 |
| Display Resolution | 1280 x 800 |
| Response Time | 25 ms |
| Weight (Approximate) | 4.85 lb |
| Brightness | 1000 Nit |
| Manufacturer | Elo Touch Solutions, Inc |
| Product Model | 1099L |
| Product Name | 1099L Digital Signage Kiosk |
| Mount Type | Flush Mount |
| Mount Type | Bracket Mount |
| Viewable Screen Size | 10.10" |
| Brand Name | Elo |
| Orientation | Landscape/Portrait |
| Height | 6.9" |
| Width | 10" |
| Depth | 1.6" |
| Touchscreen | Yes |
| Ethernet | Yes |
| Display Screen Type | LCD |
| USB | Yes |
| HDMI | Yes |
| Backlight Technology | LED |
| VESA Mount Standard | 200 x 100 |
| Native Contrast Ratio | 800:1 |
| Minimum Operating Temperature | -4°F (-20°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Storage Temperature | -22°F (-30°C) |
| Maximum Storage Temperature | 176°F (80°C) |
| DisplayPort | Yes |
| Multi-touch Screen | Yes |
| Panel Technology | Thin Film Transistor (TFT) |
| Product Color | Black |
| Color Family | Black |
| Ingress Protection (IP) Rating | IP66 |
| Impact Protection (IK) Rating | IK09 |
| Minimum Operating Humidity | 10% |
| Maximum Operating Humidity | 90% |
| Minimum Storage Humidity | 10% |
| Maximum Storage Humidity | 95% |
| Operation Hours | 24 Hours/7 Days |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Maximum LED Life | 5.7 Year |
Marketing Information
10-inch weather proof touchscreen that covers you from day to night.
Built to perform outdoors, Elo's 1099 weatherproof
monitor offers IP66 and NEMA 4X when integrated
into an enclosure as well as IK09 impact protection.
With extended operating temperatures from -20 to
60 degrees Celsius, the integrated outdoor digital
signage display can withstand harsh physical and
thermal requirements.
Sunlight readable monitor.
To provide unmitigated performance from day to night, the
ambient light sensor automatically adjusts the display's
brightness to optimize power consumption, extend the life
of the display and enhance the viewing experience.
Outdoor kiosk | solutions.
Elo's 1099L outdoor monitor enables
you to create reliable outdoor kiosks that
will capture audiences and differentiate
your sunlight readable outdoor display.
- Charging Stations
- Payment & Ticketing
- Vending Machine
- Human Machine Interface
- Order Pickup Lockers
Flexibility for your install.
Elo's waterproof touchscreen monitor can be mountedin landscape, portrait and upward facing orientations,providing optimal flexibility for integrating in anycounter, kiosk or cabinet design. Whether end users areviewing up close or from a distance, with or withoutpolarized sunglasses, our optically bonded outdoordigital signage display offers what you need whilemaintaining optimal clarity for the viewing experience.
Shipping & Dimensions
Similar Products
DS 98IN NON-TOUCH LCD DISPLAY, 4K RES., ANDROID, 500 NIT, 3 YR 24/7, INC. WALL M
ND98CMB
ELO BACKPACK WITH INTEL, WIN 11, CORE ULTRA 5, 16GB RAM, 256SSD, WI-FI, ETHERNET
E346532

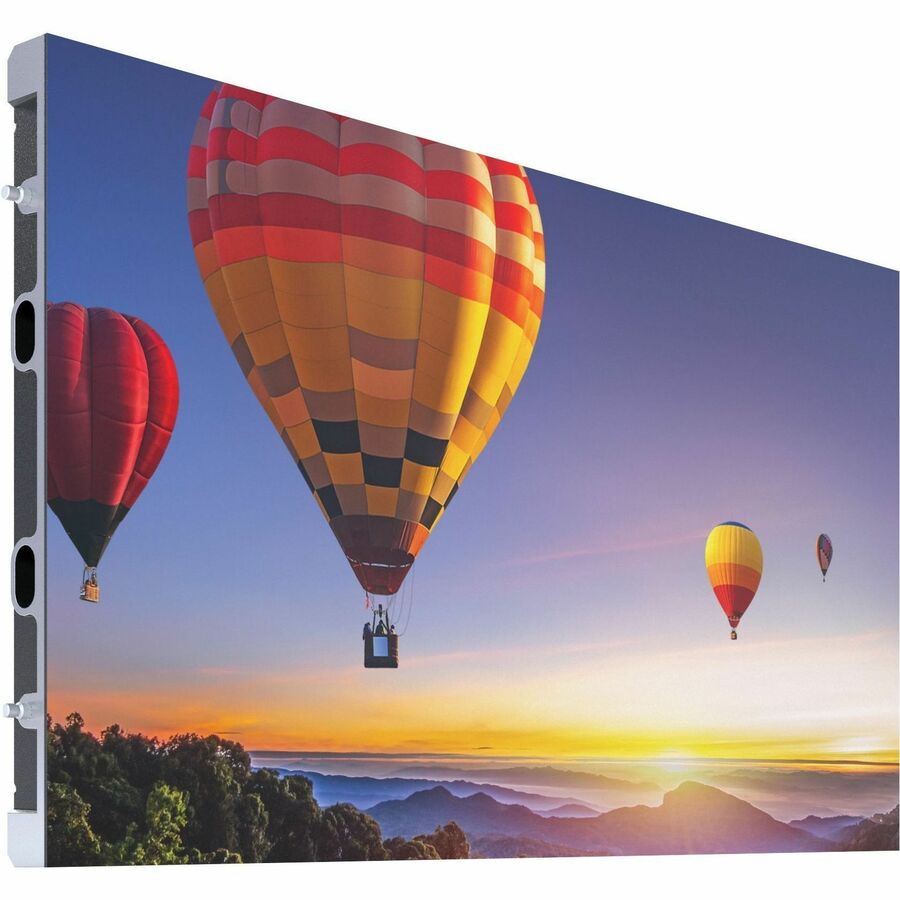

(MUST BE PURCHASED WITH LED-INST-4X4, UNLESS AN AUTHORIZED DVLED INSTALL RESELLE
LD-E121-F
(MUST BE PURCHASED WITH LED-INST-8X8, UNLESS AN AUTHORIZED DVLED INSTALL RESELLE
LD-E251-F

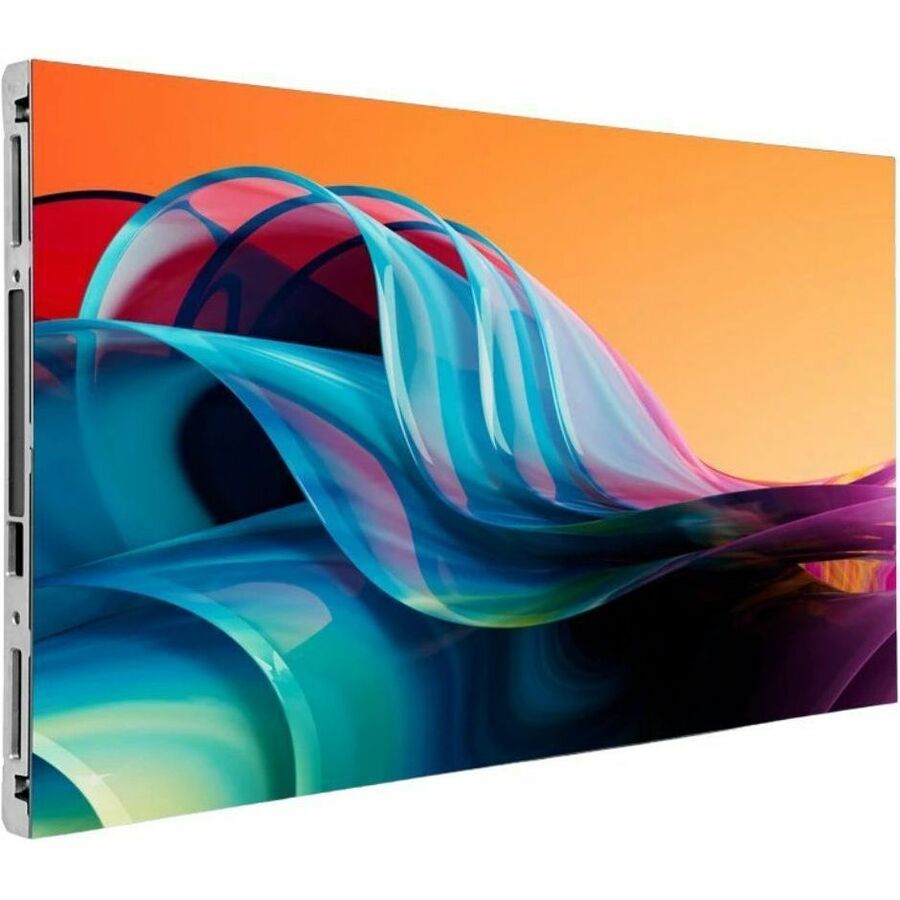

(MUST BE PURCHASED WITH LED-INST-6X6, UNLESS AN AUTHORIZED DVLED INSTALL RESELLE
