Key Features
- Capacity: 1500 VA / 1500 W
- Topology: Line Interactive
- Waveform: Sine Wave
- Output: 100-125 VAC ± 5%
- Runtime (half/full): 17.9 minutes / 6.5 minutes
- Plug type & cord: NEMA 5-15P, 10 ft. cord
- Outlets: 8 surge + battery backup
- Outlet types: 8 × NEMA 5-15R
- Communication: USB, Serial, SNMP, Cloud, Relay, EPO
- Management software: PowerPanel® Business
- Remote management: Yes, with optional RMCARD205TAA
- Environmental sensor: Yes, with optional RMCARD205TAA and SNEV001
- Warranty: 3 year
- Connected Equipment Guarantee: $400,000
- ENERGY STAR® certified: Yes
PR1500RTXL2UCTAA - UPS - RACK/TOWER - LINE-INTERACTIVE - 100/110/120/125 VAC +/-
PR1500RTXL2UCTAA
SKU 15280743
UPC 649532938162
Regular price saves you $482.59 against MSRP.
Contact us to check availability
Product Overview
PR1500RTXL2UCTAA - UPS - RACK/TOWER - LINE-INTERACTIVE - 100/110/120/125 VAC +/-
- CyberPower (PR1500RTXL2UCTAA) General Purpose UPS
- CyberPower PR1500RTXL2UCTAA TAA Compliant UPS System - 1500VA/1500W, NEMA 5-15P, 2U, Rack / Tower, Sine Wave, 8 Outlets, LCD, PowerPanel® Business, $400000 CEG, 3YR Warranty
- CyberPower PR1500RTXL2UCTAA TAA Compliant UPS System
- 1500VA/1500W, NEMA 5-15P, 2U, Rack / Tower, Sine Wave, 8 Outlets, LCD, PowerPanel® Business, $400000 CEG, 3YR Warranty
Technical Specifications
| Battery Chemistry | Lead Acid |
| Product Type | Line-interactive UPS |
| Circuit Breaker | Yes |
| Display | LCD |
| Hot Swappable | Yes |
| Input Voltage | 120 V AC |
| Manufacturer Part Number | PR1500RTXL2UCTAA |
| Limited Warranty | 3 Year |
| Output Voltage | 100 V AC |
| Output Voltage | 110 V AC |
| Output Voltage | 120 V AC |
| Output Voltage | 125 V AC |
| Weight (Approximate) | 67.70 lb |
| Features | Audible Alarm |
| Form Factor | Rack/Tower |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | PR1500RTXL2UCTAA |
| Product Name | Smart App Sinewave PR1500RTXL2UCTAA 1500VA Rack/Tower UPS |
| Network Management | SNMP/HTTP Remote Monitoring |
| Overload Protection | Yes |
| Product Line | Smart App Sinewave |
| Surge Energy Rating | 2430 J |
| Surge Suppression | Yes |
| Thermal Dissipation | 21.01 W |
| Waveform Type | Sine Wave |
| Rack Height | 2U |
| Brand Name | CyberPower |
| Plug/Connector Type | NEMA 5-15P |
| Input Voltage Range | 70 V AC - 155 V AC |
| Input Voltage Range | 100 V AC - 125 V AC |
| Output Frequency | 50 Hz |
| Output Frequency | 60 Hz |
| Alarm | Battery Mode |
| Cord Length | 10 ft |
| Height | 3.40" |
| Width | 17.10" |
| Depth | 19.70" |
| Input Frequency | 47 Hz |
| Input Frequency | 63 Hz |
| Battery Size | 12V |
| Receptacle Type | NEMA 5-15R |
| Battery Capacity | 9000 mAh |
| USB | Yes |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Serial Port | Yes |
| Number of Batteries | 4 |
| Backup/Run Time (Half Load) | 17.90 Minute |
| Backup/Run Time (Full Load) | 6.50 Minute |
| Battery Characteristics | Sealed |
| Load Capacity (VA) | 1500 VA |
| Load Capacity (Watt) | 1500 W |
| EMI/RFI Noise Filter | Yes |
| Replaceable Battery | Yes |
| TAA Compliant | Yes |
| Energy Star | Yes |
| AVR | Yes |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| EPO Port | Yes |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 50000 ft |
| Number of Battery & Surge Outlets | 8 |
| Number of Critical Load Outlets | 4 |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Transfer Time | 4 ms |
| Typical Battery Recharge Time | 3 Hour |
| Product Color | Black |
| Output Power Factor | 1 |
| Receptacle Detail | 8 x NEMA 5-15R |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Marketing Information
The PR1500RTXL2UCTAA is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series has sine wave output to eliminate power gaps that can be detected by sensitive equipment and cause unexpected shutdowns.
The Smart App Sinewave PR1500RTXL2UCTAA improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR1500RTXL2UCTAA also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.
This model accepts the BP48VP2U02TAA Extended Battery Module (EBM) for expanded runtime during power outages and the RMCARD205TAA network management card for remote management and control via a standard web browser or network management system. Includes built in cloud.
With a $400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR1500RTXL2UCTAA.
LED Indicators:
- Power On
Shipping & Dimensions
Similar Products

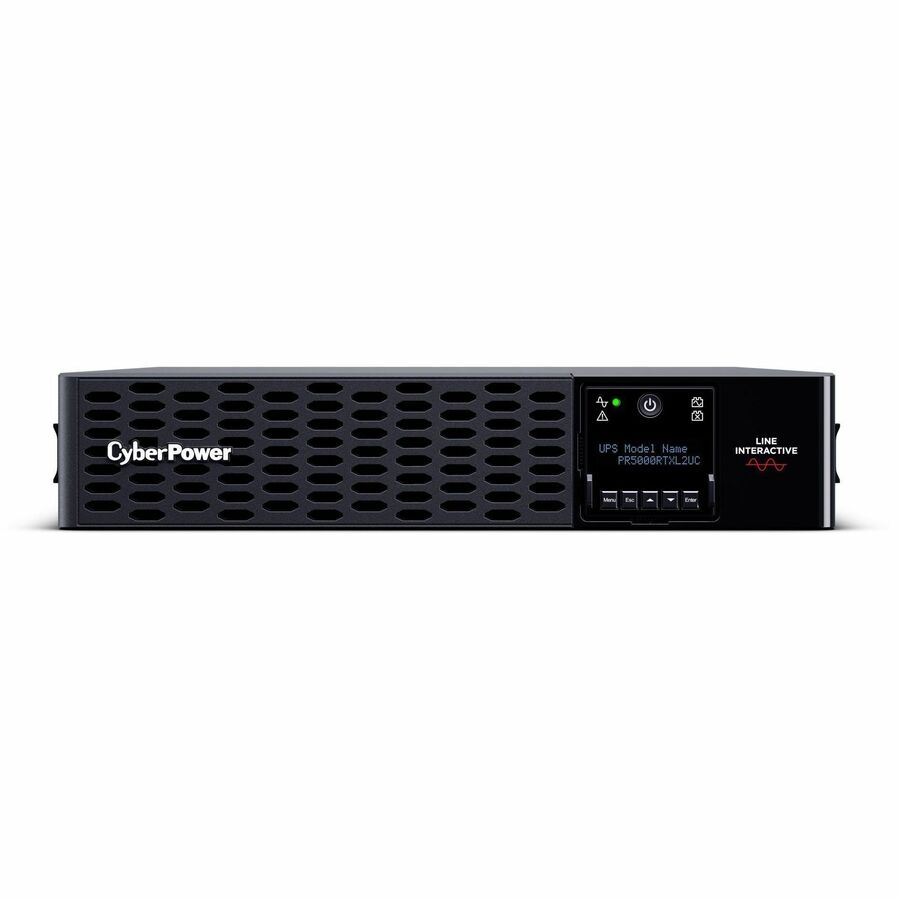

CYBERPOWER PR5000RTXL2UC UPS 2U, RACK/TOWER, SINEWAVE, 4 OUTLETS - CAPACITY: 500
PR5000RTXL2UC

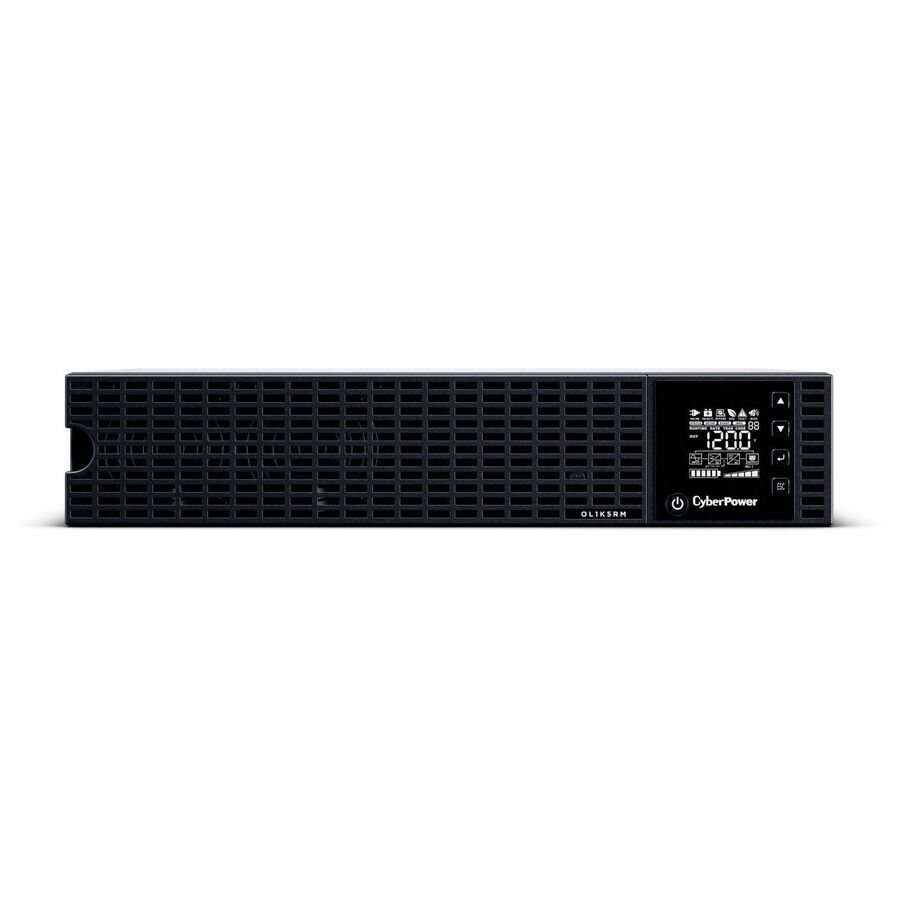

OL1K5RM - UPS - RACK-MOUNTABLE - ONLINE,DOUBLE CONVERSION - 100, 110, 115, 120,
OL1K5RM

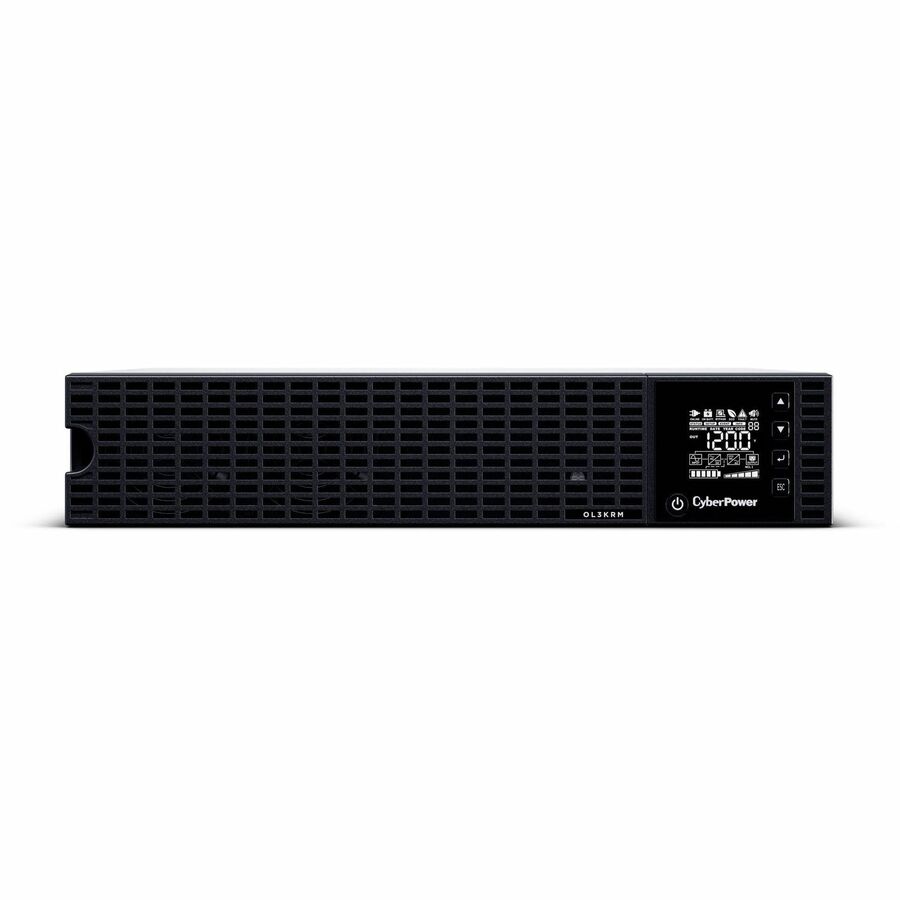

OL3KRM - UPS - RACK-MOUNTABLE - ONLINE,DOUBLE CONVERSION - 100, 110, 115, 120, 1
OL3KRM

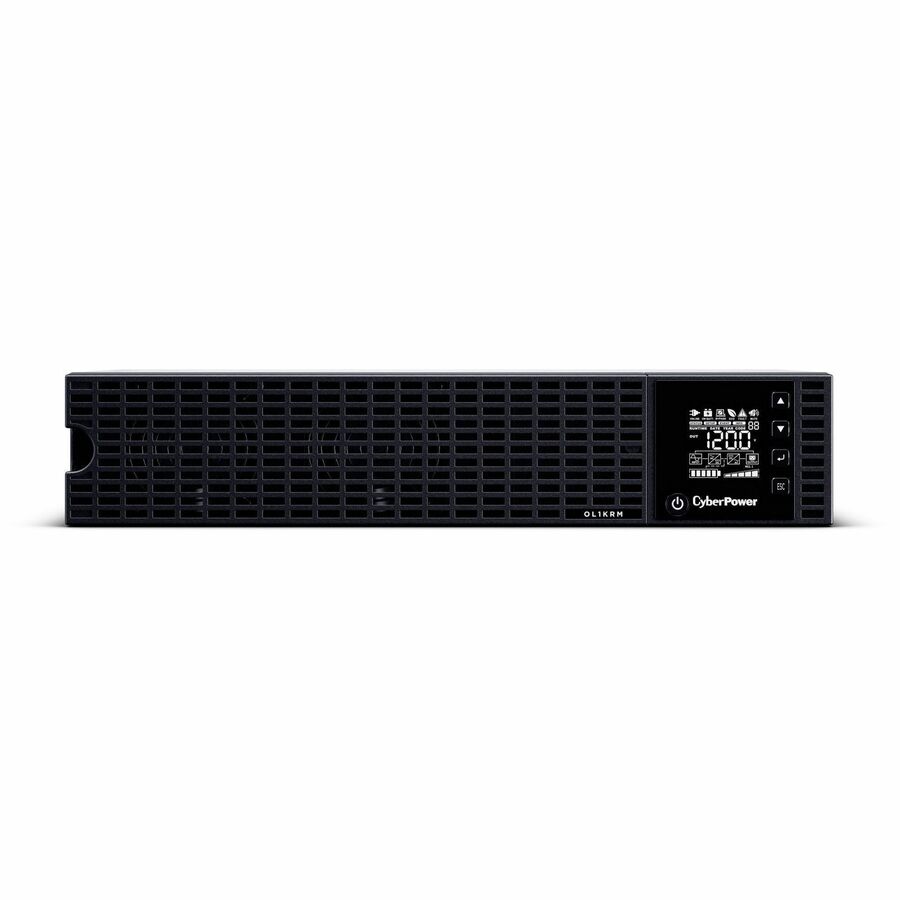

OL1KRM - UPS - RACK-MOUNTABLE - ONLINE,DOUBLE CONVERSION - 100, 110, 115, 120, 1
OL1KRM

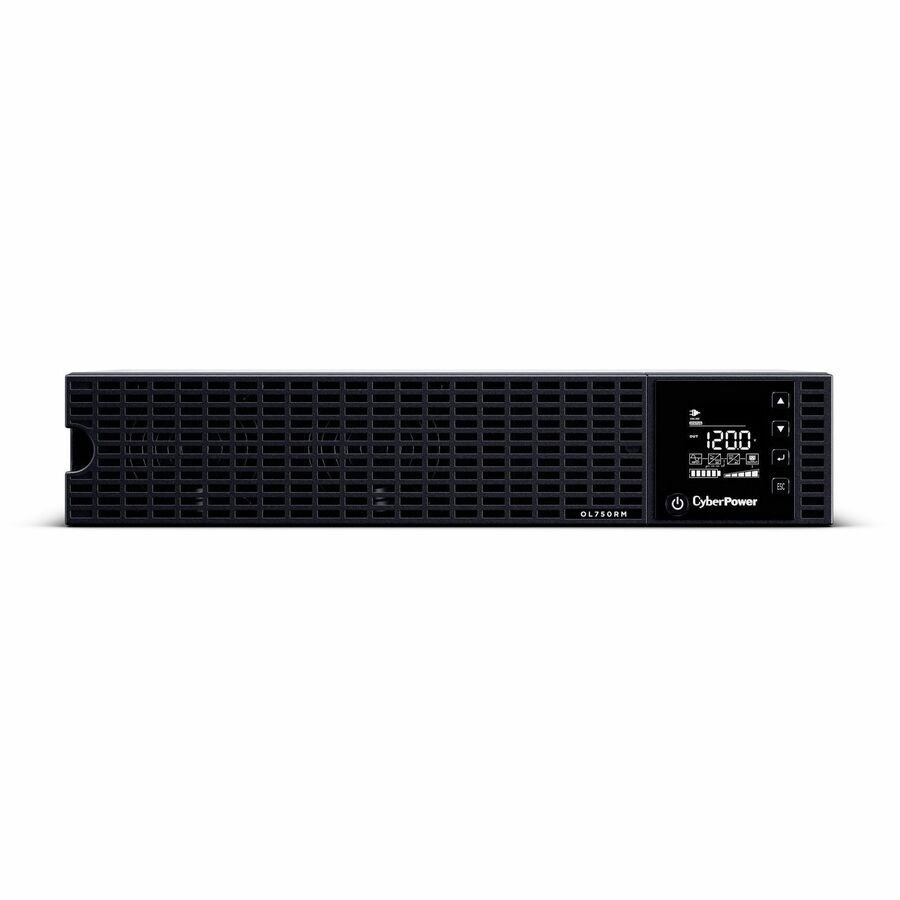

OL750RM - UPS - RACK-MOUNTABLE - ONLINE,DOUBLE CONVERSION - 100, 110, 115, 120,
